Cooler Master MasterBox Q500L ATX Minitower Review

In the world of compact PC cases, sacrifices are often made in an attempt to save space. More often than not, downsizing comes with added heat, tight space conditions, and limited component selection. Enter Cooler Master with its highly compact MasterBox Q500L ATX chassis, which manages (more or less) to deliver everything a gaming enthusiast needs, including a low admission price of $ 49.99

Cooler_Master_MasterBox_Q500L

Cooler_Master_MasterBox_Q500L

  • Pros Of Cooler Master MasterBox Q500L


    Low price
    Quiet
    Multiple design options
    Versatile I / O panel
    Support for high-end components.
    Good filtration system


  • Cons Of Cooler Master MasterBox Q500L


    Just a fan
    Thermal performance in default settings is not great


Cooler_Master_MasterBox_Q500L
Cooler_Master_MasterBox_Q500L

  • Verdict


The Cooler Master MasterBox Q500L is a great chassis for the money that has everything a gaming enthusiast needs for their budget, at a great price. Shortcomings, such as the lack of an intake fan, can be easily remedied by installing yourself. Given the low price of the case, that shouldn't be a problem.



  • Budget
  • Compact  -  ATX type
  • Motherboard Support  -  Mini-ITX, Micro-ATX, ATX
  • Dimensions (HxWxD)  -  15.19 x 9.05 x 15 inches (386 x 230 x 381 mm)
  • Clearance Above Motherboard .  -  5 inches (12.7mm)
  • Card Length  -  14.17 inches (360mm)
  • CPU Cooler Height -  6.23 inches (160mm)
  • power supply format  -  ATX
  • Weight  -  8.4 pounds (3.83 kg)
  • External bays  -  ✗
  • Internal bays  -  1x 3.5 "/ 2x 2.5"
  • card slots  -  7x
  •  2x USB 3.0 ports / jacks, audio / microphone jacks
  • Other   -  I / O Panel, rubberized screws that double as feet
  • Front fans  -  ✗
  • rear fans  -  1x 120mm
  •  Older fans   -  ✗ (2x120mm / 2x140mm Max)
  • Background Fans  -  ✗ (2x120mm / 2x140mm Max)
  • Side fans  -  ✗
  • Wetting  -  ✗
  • 2 year limited warranty

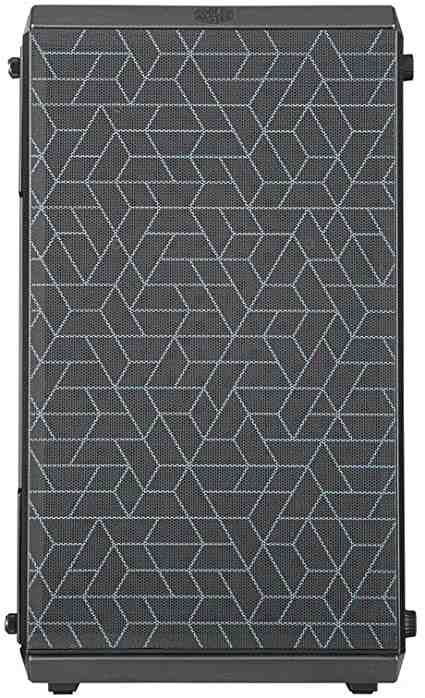

The Cooler Master MasterBox Q500L measures 15.19 "x 9.05" x 15 inches (386 x 230 x 381 mm) and weighs only 8.4 lbs (3.81 kg). Painted black inside and out, it features a steel and plastic construction with vents on three of the six sides. A perforated metal panel with a large magnetic filter covers the entire top of the chassis and provides mounting locations for two 120mm or 140mm fans below. The front and bottom panels are practically identical to the top panel.


Cooler_Master_MasterBox_Q500L

Cooler_Master_MasterBox_Q500L


The mobile I / O panel features two USB 3.0 ports, headphone and microphone jacks, a hard drive activity LED, and a power/reset button. The panel can be relocated in various positions (top, side, and bottom) according to the needs of the end-user.

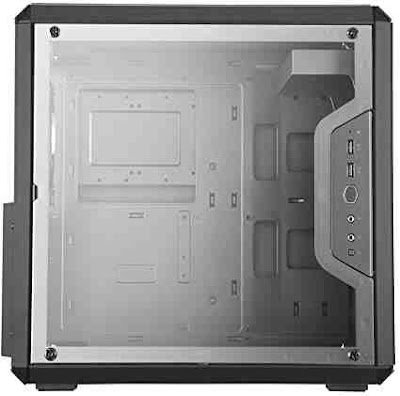

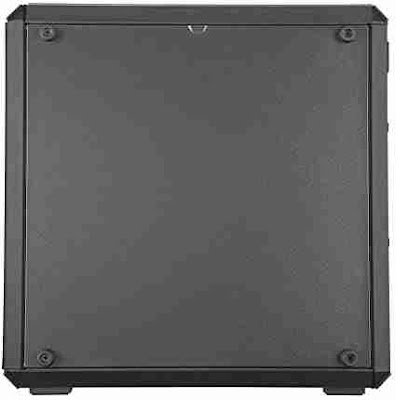

The lightly tinted edge-to-edge acrylic side panel (sorry, no tempered glass at this price) is held in place by metal thumb screws. The opposite side panel is of the stamped steel variety and attaches to the case via large rubberized metal screws.


Cooler_Master_MasterBox_Q500L

Cooler_Master_MasterBox_Q500L


The 120mm rear extractor mounts to slotted screw holes that allow you to make minor adjustments to the fan position to adjust airflow or allow room for system components. On the other side, a plug powers an extension cord for the power supply that has been relocated to the front of the chassis to save space.

With the same perforated metal design as the top and front, four rubberized rectangular feet that raise the chassis approximately a quarter of an inch off the ground, visibly differentiate the bottom panel.

The MasterBox Q500L is designed to be used in portrait or landscape orientation. The rubberized thumbscrews act when the feet with the chassis are placed on their side, and the reconfigurable I / O panel can be placed in multiple positions to best suit your needs, regardless of how the chassis is configured.


Cooler_Master_MasterBox_Q500L

Cooler_Master_MasterBox_Q500L

The fan filtration system on the MasterBox Q500L is very effective in preventing dirt and dust particles from entering your system. Magnetic seals surround the edges of the upper and lower filters.

In Cooler Master MasterBox Q500L The large filter that covers the bottom of the case is held in place by ten rubber plugs around the edge of the filter. This fixing method is not ideal when it comes to cleaning and maintenance, especially when the case is positioned vertically. This is less of a problem when the case is placed in a horizontal position. Ideally, we would see magnetic filters on all sides, including the bottom. But again, given the $ 49.99 price tag on this case, we're willing to live with a few drawbacks.
